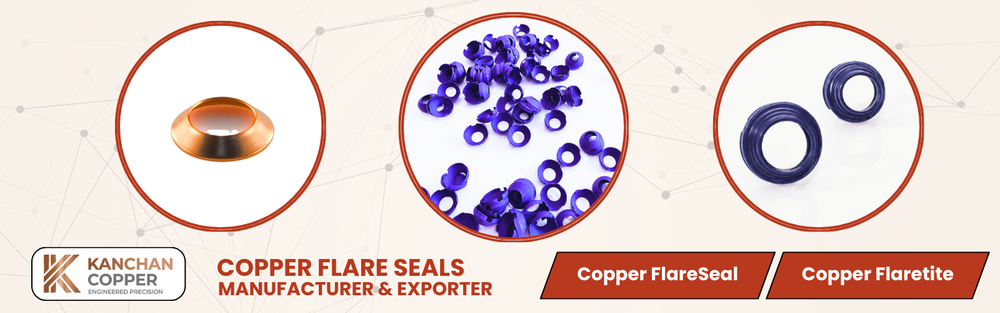

Copper Flare Seals Manufacturer and Exporter
Kanchan Copper Industries leads the way in supplying Copper Flare Seals and Flaretite Seals for reliable sealing in compatible flare fitting connections. We offer a variety of sealing solutions for JIC 37° and SAE 45° flare systems that can help prevent leakage and enhance connection reliability. We supply products for flare sealing for industrial buyers, distributors, wholesalers and international customers who demand reliable flare sealing products. Focusing on product specifications, size requirement, export supply, we help customers to find suitable Copper Flare Seals for their applications.
FlareSeal
Copper FlareSeal are precision sealing elements for use with compatible flare fitting assemblies to minimize leakage of fluids and gases at the connection points. They offer a second seal between mating surfaces and can be available in various configurations to accommodate different fitting needs. Kanchan Copper Industries offers Flare Seals for use in flare connections that need to be compatible with JIC 37° and SAE 45° flare connections. The selection of the appropriate seal depends on the fitting standard, material compatibility and operating conditions.
Flaretite Seals
Flaretite Seals are special flare fitting seals for better sealing in compatible connections. Depending on product configuration, these seals can have a precision formed metal body with a special sealing coating that will compensate for minor product surface irregularities and minimize leakage. Kanchan Copper Industries offers Flaretite Seals for JIC 37° and SAE 45° Flare fitting systems (As per product availability & specification). These products are ideal for customers seeking to trust in a sealing solution for compatible industrial, refrigeration, gas and fluid-handling applications.
Copper Flare Seals Specification:
There are different configurations of Copper Flare Seals and Flaretite Seals depending upon the application’s needs. Specifications may differ depending on the type of seal, connection angle, material, coating and size. The verified technical data, such as material specifications, application standards, operating temperature, pressure and installation requirements, should be referred to in the relevant product datasheet. For the reliable sealing performance, it is necessary to select the seal according to the fitting structure and conditions.
Copper Flare Seals Size, Weight and Dimensions
The Copper Flare Seals come in various sizes and dimensional configurations to fit compatible flare fittings. The correct size depends on the type of fitting, nominal connection size, flare angle and which standard is applicable. The size and weight of the product may vary due to the design and material used. When choosing Flare Seals or Flaretite Seals for particular applications, customers should consult the datasheet for correct dimensions, drawings and weight.
- Standerd: SAE J514, SAE J512
- Type: JIC 37° Flare (SAE J514) Seals, SAE 45° Flare (SAE J512) Seals
- Size: 1⁄8, 3⁄16, 1⁄4, 5⁄16, 3⁄8, 1⁄2, 3⁄4, 7⁄8, 1, 1 1⁄4, 1 1⁄2, 2
- Seal Material: Copper for common brass fittings
- Coating Material: LOCTITE® DRI 503™ pre-applied thread sealant
- Temperature Rating: -40° to 300°F
- Pressure Rating: Up to 20,000 PSI
- Typical Application: Hydraulic, pneumatic, fuel, instrumentation and fluid-power connections
- Seal Function: Metal-to-metal sealing at 37° & 45° flare interface
JIC 37° Flare (SAE J514) Flare Seal Dimensions, Size Chart and Table
| Inch size | Dash size | I.D. (B) inches | O.D. (A) inches |
|---|---|---|---|
| 1⁄8 | -2 | 1⁄8 | 0.27 |
| 3⁄16 | -3 | 3⁄16 | 0.34 |
| 1⁄4 | -4 | 1⁄4 | 0.39 |
| 5⁄16 | -5 | 5⁄16 | 0.45 |
| 3⁄8 | -6 | 3⁄8 | 0.51 |
| 1⁄2 | -8 | 1⁄2 | 0.69 |
| 5⁄8 | -10 | 5⁄8 | 0.81 |
| 3⁄4 | -12 | 3⁄4 | 0.98 |
| 7⁄8 | -14 | 7⁄8 | 1.1 |
| 1 | -16 | 1 | 1.23 |
| 1 1⁄4 | -20 | 1 1⁄4 | 1.54 |
| 1 1⁄2 | -24 | 1 1⁄2 | 1.79 |
| 2 | -32 | 2 | 2.42 |
SAE 45° Flare (SAE J512) Flare Seal Dimensions, Size Chart and Table
| Inch size | Dash size | I.D. (B) inches | O.D. (A) inches |
|---|---|---|---|
| 1⁄8 | -2 | 1⁄8 | 0.27 |
| 3⁄16 | -3 | 3⁄16 | 0.34 |
| 1⁄4 | -4 | 1⁄4 | 0.39 |
| 5⁄16 | -5 | 5⁄16 | 0.45 |
| 3⁄8 | -6 | 3⁄8 | 0.57 |
| 1⁄2 | -8 | 1⁄2 | 0.69 |
| 5⁄8 | -10 | 5⁄8 | 0.81 |
| 3⁄4 | -12 | 3⁄4 | 0.99 |
| 7⁄8 | -14 | 7⁄8 | 1.16 |
| 1 | -16 | 1 | 1.29 |
30° Flare JIS 300 Flare Seal Dimensions, Size Chart and Table
| Inch size | Dash size | I.D. (B) inches | O.D. (A) inches |
|---|---|---|---|
| 1⁄8 | -2 | 1⁄8 | 0.35 |
| 1⁄4 | -4 | 1⁄4 | 0.47 |
| 3⁄8 | -6 | 3⁄8 | 0.6 |
| 1⁄2 | -8 | 1⁄2 | 0.75 |
| 5⁄8 | -10 | 5⁄8 | 0.8 |
| 3⁄4 | -12 | 3⁄4 | 0.97 |
| 1 | -16 | 1 | 1.22 |
| 1 1⁄4 | -20 | 1 1⁄4 | 1.56 |
| 1 1⁄2 | -24 | 1 1⁄2 | 1.79 |
| 2 | -32 | 2 | 2.26 |
Uses of Copper Flare Seals
Copper Flare Seals and Flaretite Seals are suitable for use in systems where it is essential to make a secure, reliable flare fitting connection. When properly chosen and installed as per manufacturer’s guidelines, they minimize leakage risks and provide reliable connections. Applications include:
- HVAC and Refrigeration Systems: Compatible for refrigeration systems, air-conditioning systems and cooling installations in flare connections.
- Gas Connection Systems: Appropriate for compatible gas connections where the seal material, product rating, meets the application requirements.
- Hydraulic Systems: Applied with compatible Flare fittings in hydraulic equipment and hydraulic fluid power installations.
- Pneumatic Equipment: Used in proper compressed-gas and pneumatic equipment.
- Industrial Machinery: For machinery and equipment that require compatible flare fitting assemblies.
- Automotive and Transportation Equipment: Suitable for compatible fluid or gas connections in relevant equipment and systems.
- Industrial Fluid Handling: Flare connections for compatible piping and fluid handling systems that demand reliable connections.
- Maintenance and Repair: Used for servicing and replacement of seals in compatible flare fitting assemblies in accordance with applicable installation requirements.
