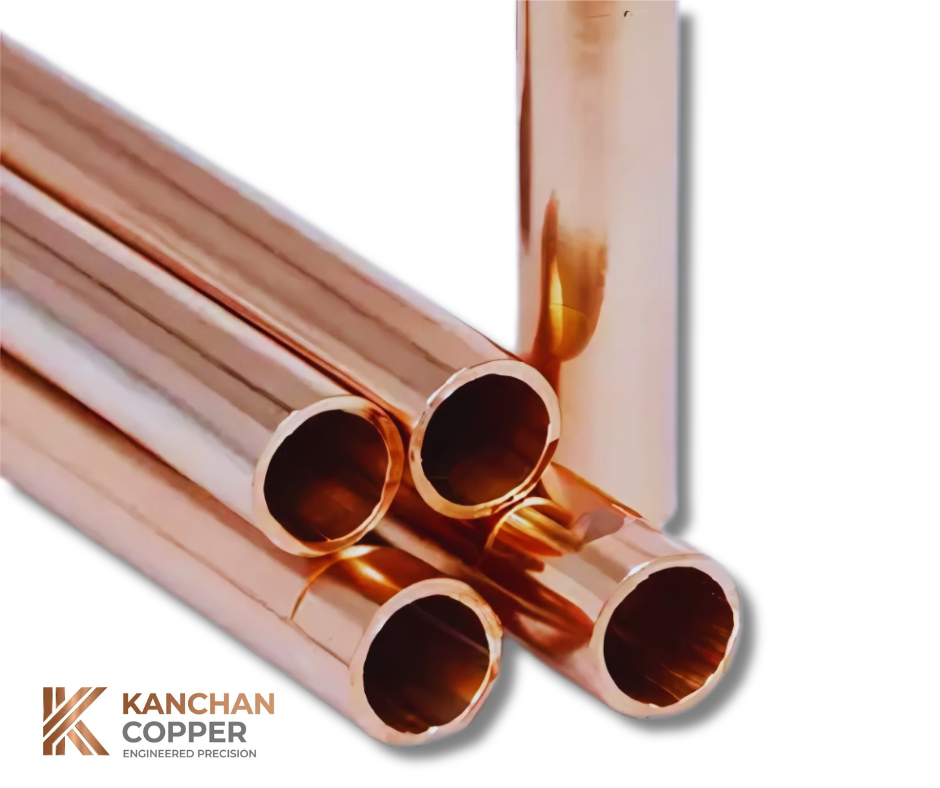

Copper Pipes Manufacturer and Exporter in Canada

Kanchan Copper Industries is a well-known manufacturer and exporter of Copper Pipes of premium quality in Canada. Having solid slice within the Canadian market, the company provides dependable piping solutions that are fitted in a variety of industries. Kanchan Copper Industries makes sure that high quality of materials are used, it is well-crafted, and meets international standards. The copper pipes of the company find extensive application in plumbing, heating, ventilation, and air conditioning, refrigeration and medical gas pipeline systems. Kanchan Copper Industries has remained persistent in conquering the Canadian market with its reliability and services.

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe Specification :

Copper Alloy Pipe Specification	ASTM B280 ASME SB280 / ASTM B68 ASME SB68
Sizes	Copper Round Pipe Wall thickness: 0.2mm~120mm Outside Diameter: 2mm~910mm
Copper Pipe Schedule	SCH5, SCH10, SCH40, STD, SCH80, SCH160
Copper Welded Pipe size	5.0 mm – 1219.2 mm
Specialized in	Large Diameter Copper Alloy Pipe
Copper Alloy EFW Pipe size	5.0 mm – 1219.2 mm
Copper Pipe Length	Single Random, Double Random & Cut Length.
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Marking	All Copper Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Copper Pipe Hardness	1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft etc
Copper Pipe Material	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, C72200, etc.
Copper Pipe Finish	mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required.
Copper Alloy Pipe End	Plain End, Beveled End, Treaded.
Copper Alloy Seamless Pipe size	4 to 219mm W. T. : 0.5 to 20mm

Copper Pipes Manufacturer Types, Seamless Copper Tubes Types :

Kanchan Copper Industries as a manufacturer of copper pipes has a great variety of types of pipes in order to meet various industrial and commercial needs within Canada. These types are specifically matched with the different performance requirements among which include pressure, thickness and intended usage. Due to its focus on the industries, such as construction, HVAC, medical, etc., Kanchan Copper Industries can contribute to the infrastructure and development of the country. The company is committed to quality and diversity that make it a reliable provider of copper pipes in the whole of Canada.

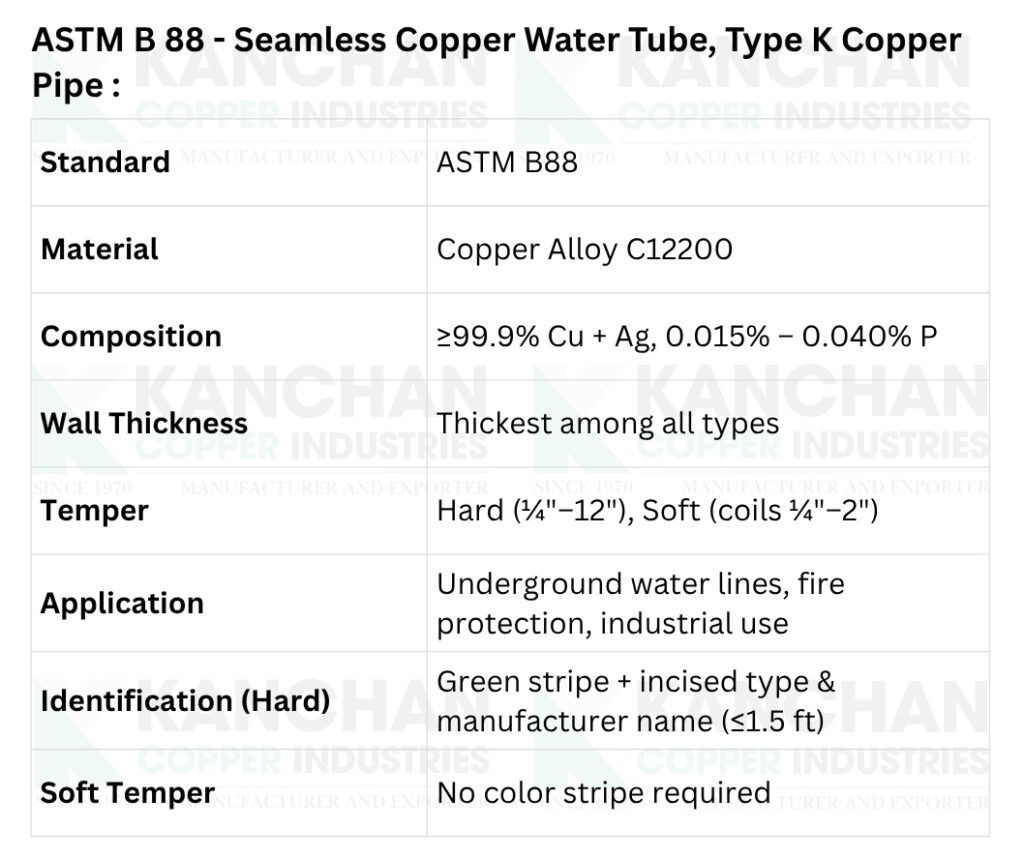

ASTM B 88 – Seamless Copper Water Tube, Type K Copper Pipe:

Kanchan Copper Industries produces Type K Copper Pipes with wall thickness that is thicker than all others and this is suitable in the high pressure Canadian applications. PVC pipes are also strong and durable and are therefore preferred where there is underground water service line. They are immune to corrosion and, thus, they have a longer lifespan that normally appears even under extreme Canadian weather. All the Type K pipes designed by Kanchan Copper Industries are guaranteed in meeting the grounds of reliability and durability.

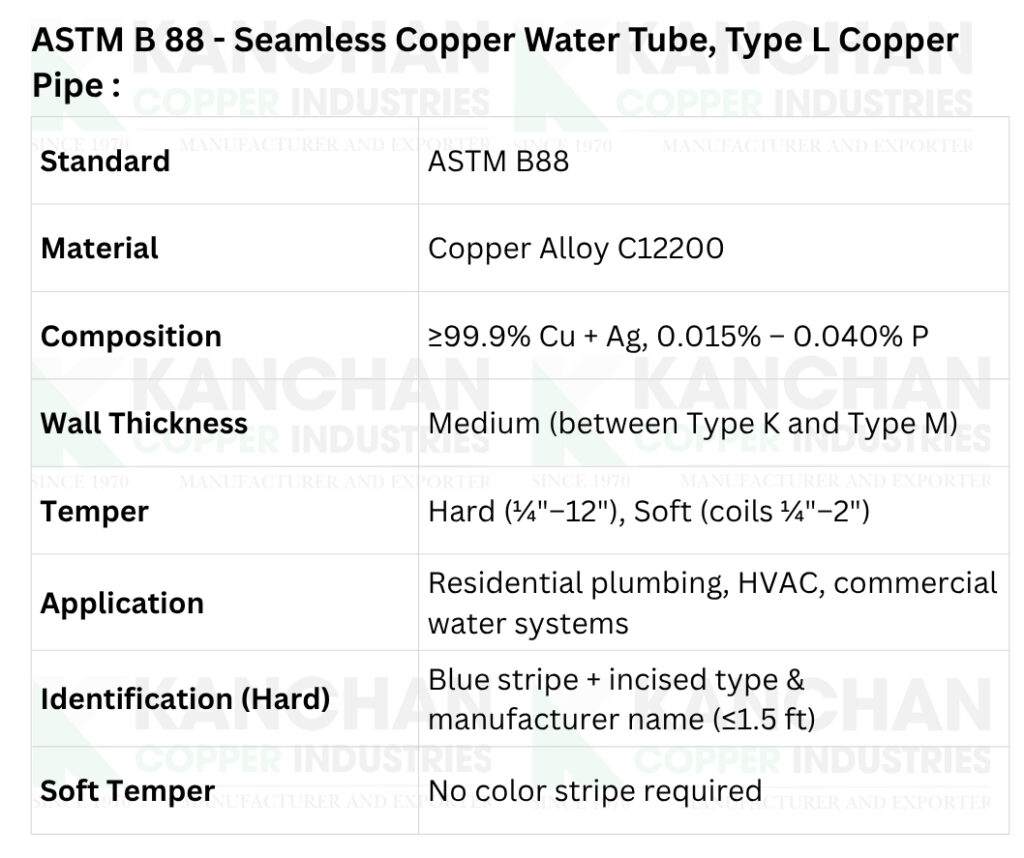

ASTM B 88 – Seamless Copper Water Tube, Type L Copper Pipe:

Kanchan Copper Industries Type L Copper Pipes are the most preferred in interior plumbing and HVAC systems in the Canadian buildings. This pipes combine both strengths and flexibility, thus they are used in residences as well as in commercial properties. Their wall thickness is very safe and effective with respect to water and gas delivering systems. Kanchan Copper Industries ensures uniformity in size as well as a high-quality finish to ensure ease of installations.

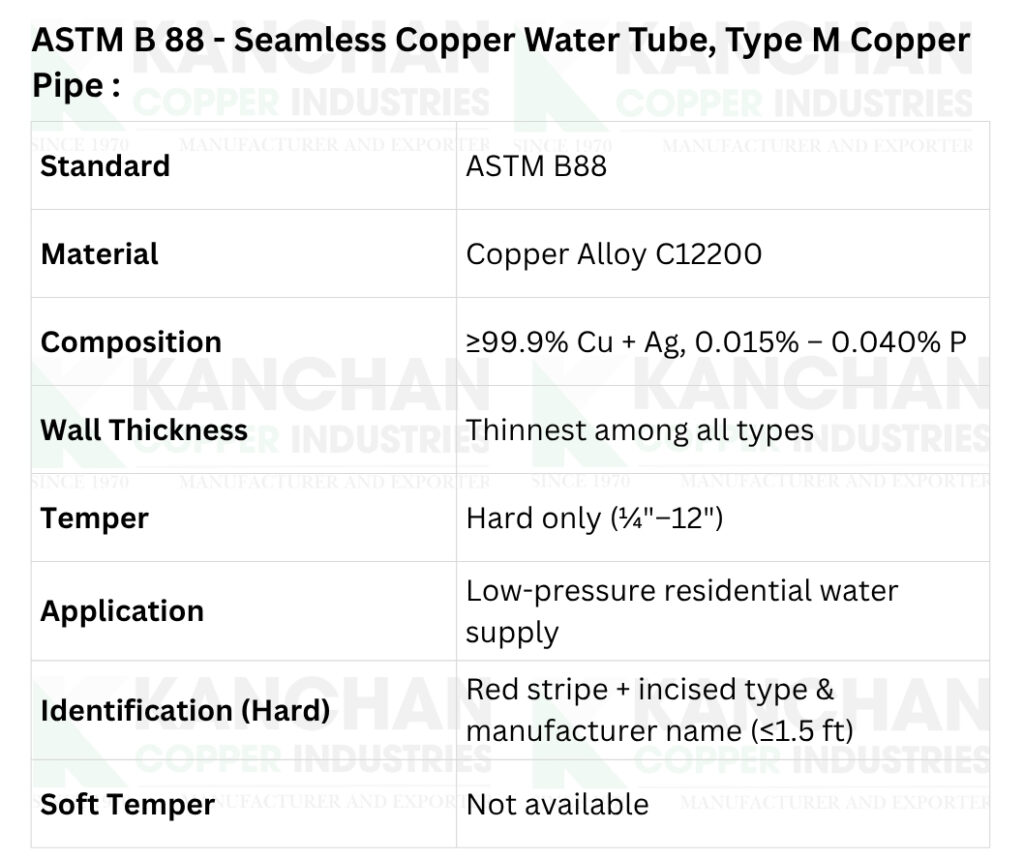

ASTM B 88 – Seamless Copper Water Tube, Type M Copper Pipe:

Kanchan Copper Industries provides Type M Copper Pipes thinner Galled which is more suitable in low lines of pressure applications throughout Canada. These pipes are economically decent and regular in hot and cold water supply. They are light and therefore easy to handle and install and so large residential projects become easy to install. The Kanchan Copper Industries makes sure that every pipe conforms both at the national and international level.

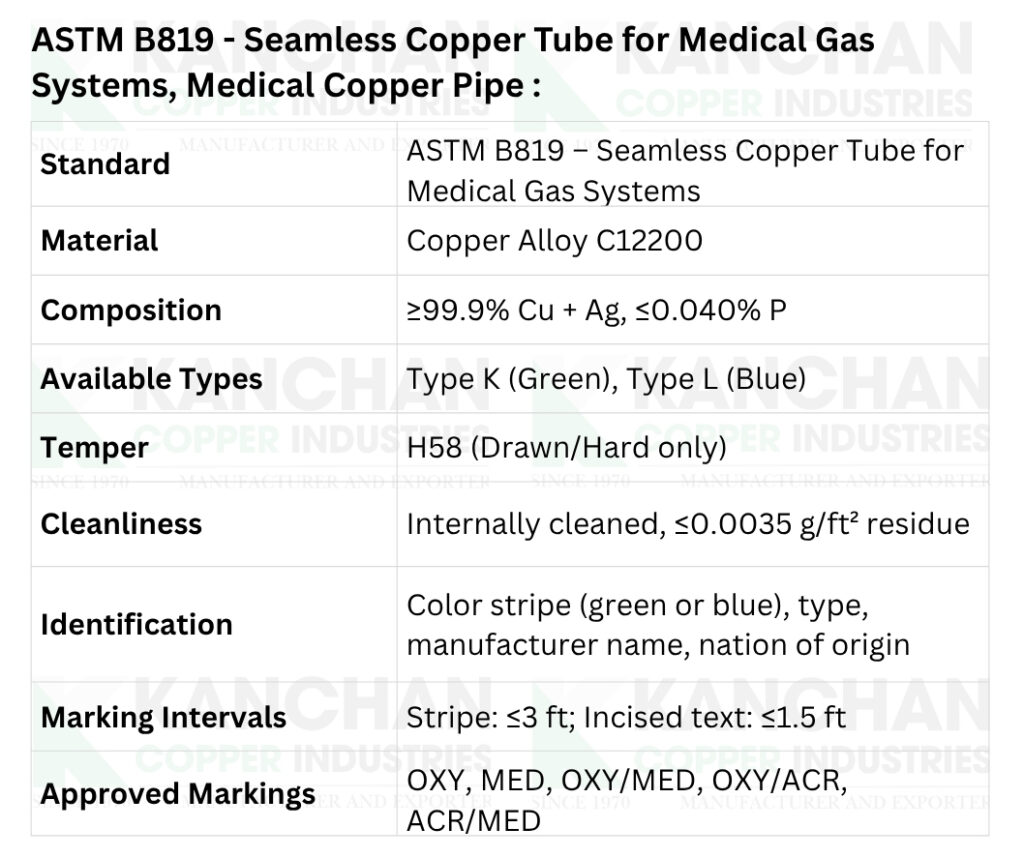

ASTM B819 – Seamless Copper Tube for Medical Gas Systems, Medical Copper Pipe :

Kanchan Copper Industries manufactures highly pure and precise Medical Gas Copper Pipes which are supplied to the healthcare infrastructure in Canada. These pipes are specially degreased and cleaned to match the standards of the hospital. They are deployed in the transportation of oxygen, nitrogen and other medical gases without any problems. Kanchan Copper Industries is also determined to offer quality services to Canadian hospitals using quality and sterilized piping systems.

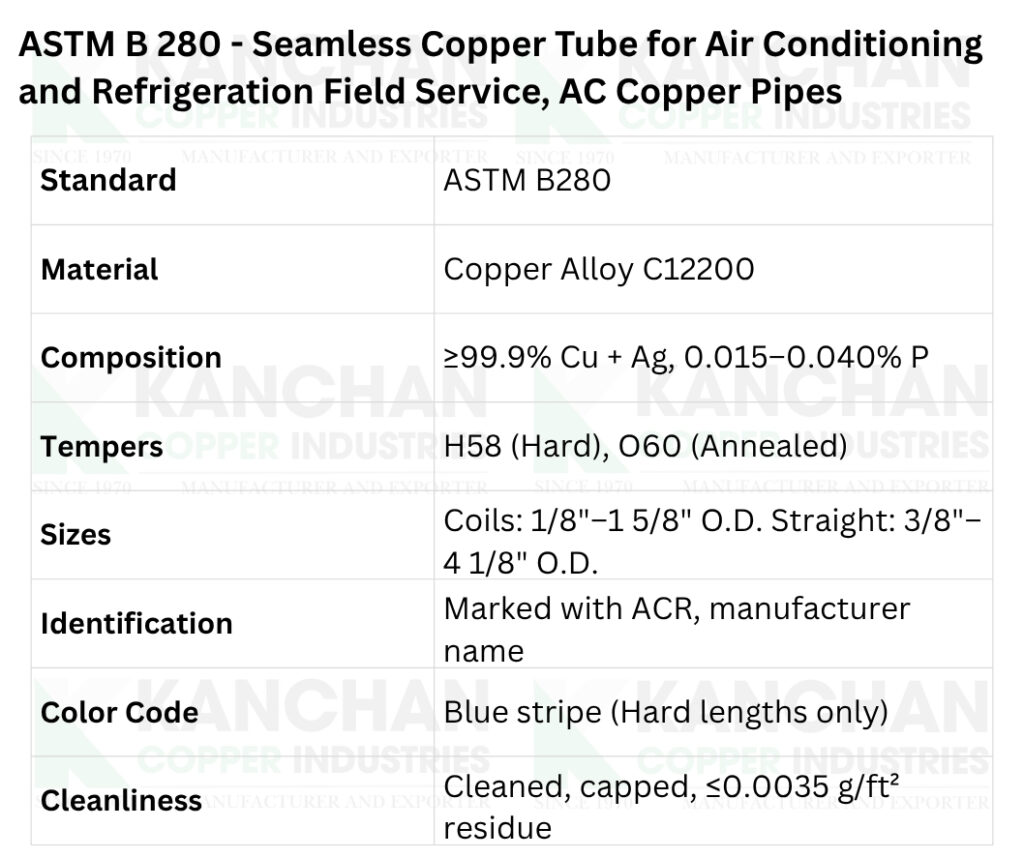

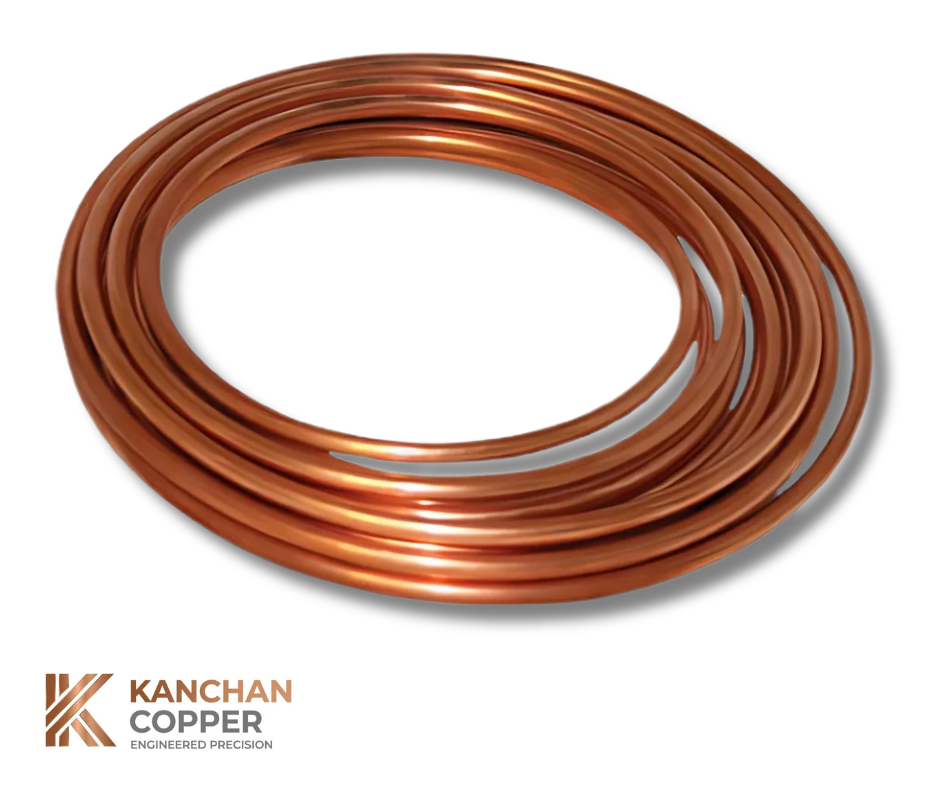

ASTM B 280 – Seamless Copper Tube for Air Conditioning and Refrigeration Field Service, AC Copper Pipes:

Kanchan Copper Industries makes AC Copper Pipes exclusively to suit air conditioning and refrigeration applications in commercial and residential organic-metal buildings in Canada. These pipes have high thermal conductivity as well as resistance to corrosion making them energy efficient and system durable. HVACs consider them because they are very consistent and reliable. Kanchan Copper Industries is still offering high-quality AC pipes in accordance with the climatic requirements of Canada.

Difference Between Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe:

Type	Wall Thickness	Application	Standard	Color Code
Type K	Thickest	Underground, fire systems	ASTM B88	Green
Type L	Medium	Interior plumbing, HVAC	ASTM B88	Blue
Type M	Thinnest	Low-pressure water supply	ASTM B88	Red
Medical Copper	Similar to K/L	Medical gas (cleaned & capped)	ASTM B819	No color (capped ends)
AC Copper Pipe	Variable	Refrigeration & air conditioning	ASTM B280	No color (coil sealed)

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe – Properties of Copper Pipes Manufacturer:

Kanchan Copper Industries produce Copper Pipes that have characteristics that enable them to meet the various weather and industrial demands of Canada. These pipes are known to have outstanding strength, corrosion resistance and long term performance. Copper has special properties guaranteeing reliable performance in home, commercial, and industrial networks. At Kanchan Copper Industries, all pipes are designed in terms of performance, safety and durability.

• High Durability : Kanchan Copper Industries manufactures Copper Pipes that are durable to wear, pressure and weathering. They are affordable and durable to Canadian infrastructure because of their long life span.
• Great Corrosion Resistance : Such pipes are not prone to corrosion by water and air thus low maintenance requirements are required. Kanchan Copper Industries will make sure that this property facilitates the generation of clean water flow and system integrity in Canadian settings.
• Better Thermal Conductivity : Kanchan Copper Industries supplies pipes with high thermal characteristics and are therefore suitable in heating, ventilation, and air conditioning as well as refrigeration. This makes it easier to control the temperatures easily even in the adverse climate of Canada.
• Adjustable and Simple to erect : Copper pipes are easily handled and installed as they are flexible, which saves labor time as well as effort. The company, Kanchan Copper Industries, provides pipes that make the system layouts in different Canadian projects easy.
• Leak Proof and Joint Friendly : Kanchan Copper Industries Copper Pipes have great benevolent capability to join through brazing or soldering. This eliminates possibilities of liberalization and favors secure long-term installation of buildings or houses in Canada.
• Recyclable and Eco-friendly : Kanchan Copper Industries also embraces sustainability through provision of copper pipes, which are up to 100% recyclable. This environmental friendly aspect goes hand in hand with Canadian emphasis on the green building techniques and resourceful consumption.

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe – Copper Pipes Dimensions, Size and Weight :

Copper Pipes produced by Kanchan Copper Industries are available in a great number of sizes, wall thickness and weight to suit the exact requirements of the Canadian market. Depending on the application, whether low-pressure plumbing, high-pressure industrial, or even the accurate delivery of medical gas, there is an appropriate choice. The versatile range of dimensions enables flexibility in designing the system, enhancement of performance, and cost-effectiveness on different projects and applications.

Type K Copper Pipes Size, Weight and Dimension:

Kanchan Copper Industries also offer Type K Copper Pipes of overlarge diameter and heavy wall, suitable in high pressure and underground application all over Canada.

Nominal or standard size (inches)	Nominal dimensions (inches)			Calculated values (based on nominal dimensions)
	Outside diameter	Inside diameter	Wall thickness	Cross sectional area of bore (square inches)	Weight of tube only (lb/ft)	Weight of tube & water (lb/ft)	Volume Contents of tube (per linear foot)
							Cubic feet	Gallon
1/4	0.375	0.305	0.035	0.073	0.133	0.177	0.00051	0.00379
3/8	0.500	0.402	0.049	0.127	0.269	0.324	0.00088	0.00660
1/2	0.625	0.527	0.049	0.218	0.344	0.438	0.00151	0.0113
5/8	0.750	0.652	0.049	0.334	0.418	0.562	0.00232	0.0174
3/4	0.875	0.745	0.065	0.436	0.641	0.829	0.00303	0.0227
1	1.125	0.995	0.065	0.778	0.837	1.18	0.00540	0.0404
1-1/4	1.375	1.245	0.065	1.22	1.04	1.57	0.00847	0.0634
1-1/2	1.625	1.481	0.072	1.72	1.36	2.10	0.0119	0.0894
2	2.125	1.959	0.083	3.01	2.06	3.36	0.0209	0.156
2-1/2	2.625	2.435	0.095	4.66	2.92	4.94	0.0324	0.242
3	3.125	2.907	0.109	6.64	4.00	6.87	0.0461	0.345
3-1/2	3.625	3.385	0.120	9.00	5.12	9.01	0.0625	0.468
4	4.125	3.857	0.134	11.7	6.51	11.6	0.0813	0.608
5	5.125	4.805	0.160	18.1	9.67	17.5	0.126	0.940
6	6.125	5.741	0.192	25.9	13.9	25.1	0.180	1.35
8	8.125	7.583	0.271	45.2	25.9	45.4	0.314	2.35
10	10.125	9.449	0.338	70.1	40.3	70.6	0.487	3.64
12	12.125	11.315	0.405	101	57.8	101	0.701	5.25

Type L Copper Pipes Size, Weight and Dimension:

Type L Copper Pipes is supplied very well and in medium thickness, and this is ideal in interior plumbing and other HVAC systems supplied by Kanchan Copper Industries in Canada.

Nominal Size (inches)	Actual Outside Diameter (inches)		Tolerance on Outside Diameter (inches)		Wall Thickness (inches)		Weight (lb/ft)
			Annealed1)	Drawn2)	Nominal	Tolerance
1/4	3/8	0.375	0.002	0.001	0.030	0.003	0.126
3/8	1/2	0.500	0.0025	0.001	0.035	0.004	0.198
1/2	5/8	0.625	0.0025	0.001	0.040	0.004	0.285
5/8	3/4	0.750	0.0025	0.001	0.042	0.004	0.362
3/4	7/8	0.875	0.003	0.001	0.045	0.004	0.455
1	1 1/8	1.125	0.0035	0.0015	0.050	0.005	0.655
1 1/4	1 3/8	1.375	0.004	0.0015	0.055	0.006	0.884
1 1/2	1 5/8	1.625	0.0045	0.002	0.060	0.006	1.14
2	2 1/8	2.125	0.005	0.002	0.070	0.007	1.75
2 1/2	2 5/8	2.625	0.005	0.002	0.080	0.008	2.48
3	3 1/8	3.125	0.005	0.002	0.090	0.009	3.33
3 1/2	3 5/8	3.625	0.005	0.002	0.100	0.010	4.29
4	4 1/8	4.125	0.005	0.002	0.114	0.011	5.38
5	5 1/8	5.125	0.005	0.002	0.125	0.012	7.61
6	6 1/8	6.125	0.005	0.002	0.140	0.014	10.20

Type M Copper Pipes Size, Weight and Dimension:

Kanchan Copper Industries also sells light weight Type M Copper Pipes with lighter walls that can be used in low pressure systems and lower cost constrained Canadian Construction requirements.

Nominal Size (inches)	Actual Outside Diameter (inches)		Tolerance on Outside Diameter (inches)		Wall Thickness (inches)		Weight (lb/ft)
			Annealed1)	Drawn2)	Nominal	Tolerance
1/4	3/8	0.375	0.002	0.001			0.106
3/8	1/2	0.500	0.0025	0.001	0.025	0.002	0.144
1/2	5/8	0.625	0.0025	0.001	0.028	0.003	0.203
5/8	3/4	0.750	0.0025	0.001			0.263
3/4	7/8	0.875	0.003	0.001	0.032	0.003	0.328
1	1 1/8	1.125	0.0035	0.0015	0.035	0.004	0.464
1 1/4	1 3/8	1.375	0.004	0.0015	0.042	0.004	0.681
1 1/2	1 5/8	1.625	0.0045	0.002	0.049	0.005	0.94
2	2 1/8	2.125	0.005	0.002	0.058	0.006	1.46
2 1/2	2 5/8	2.625	0.005	0.002	0.065	0.006	2.03
3	3 1/8	3.125	0.005	0.002	0.072	0.007	2.68
3 1/2	3 5/8	3.625	0.005	0.002	0.083	0.008	3.58
4	4 1/8	4.125	0.005	0.002	0.095	0.010	4.66
5	5 1/8	5.125	0.005	0.002	0.109	0.011	6.66
6	6 1/8	6.125	0.005	0.002	0.122	0.012	8.91

Medical Copper Pipes Size, Weight and Dimension:

Kanchan Copper Industries Medical Copper Pipes are available in the exact sizes and weights to provide assurance of medical gases reliability in healthcare facilities and hospitals all over Canada.

Nominal Outside Diameter (mm)	Tube Length (m)	Wall Thickness (mm)
12	6	0.6
15	3, 6	0.7
22	3, 6	0.9
28	3, 6	0.9
35	6	1.0
42	6	1.0
54	6	1.0
67	6	1.5
76	6	1.5
108	6	1.5
133	6	1.5
159	6	2.0
219	6	3.0

AC Copper Pipe Size, Weight, and Dimensions:

Kanchan Copper Industries manufactures AC Copper Pipes in large varieties of pipe sizes and wall thickness as per the efficient flow of the refrigerant in the cooling systems of Canada. These pipes come in soft and hard tempers, which make them easy to install, and have a long-life span when used in the HVAC systems.

Nominal Size (inches)	Annealed (A) or Drawn Temper (D)	Outside Diameter (inches)	Inside Diameter (inches)	Wall Thickness (inches)	Cross Sectional Area of Bore (square inches)
1/8	A	0.125	0.065	0.030	0.0033
3/16	A	0.187	0.128	0.030	0.0129
1/4	A	0.250	0.190	0.030	0.0284
5/16	A	0.312	0.248	0.032	0.0483
3/8	A	0.375	0.311	0.032	0.076
	D	0.375	0.315	0.030	0.078
1/2	A	0.500	0.436	0.032	0.149
	D	0.500	0.430	0.035	0.145
5/8	A	0.625	0.555	0.035	0.242
	D	0.625	0.545	0.040	0.233
3/4	A	0.750	0.680	0.035	0.363
	A	0.750	0.666	0.042	0.348
	D	0.750	0.666	0.042	0.348
7/8	A	0.875	0.785	0.045	0.484
	D	0.875	0.785	0.045	0.484
1 1/8	A	1.125	1.025	0.050	0.825
	D	1.125	1.025	0.050	0.825
1 3/8	A	1.375	1.265	0.055	1.26
	D	1.375	1.265	0.055	1.26

Type K Copper Pipes, Type L Copper Pipes, Type M, Medical Copper Pipe and AC Copper Pipes Chemical Compositions :

Copper Pipes produced by Kanchan Copper Industries are made of high-purity copper and thus, possess very good conductivity, corrosion resistance and can be compatible with most applications in Canada.

Copper (Cu) + Silver (Ag)	Phosphorus (P)	Alloy Designation
≥ 99.9% (combined)	0.015% – 0.040% (max)	C12200

Mechanical Properties of Copper Pipes:

The Copper Pipes manufactured by Kanchan Copper Industries are subjected to stringent mechanical test and properties such as, high tensile strength and length have also been taken into consideration to allow durability and structural integrity in Canadian systems.

Property	Type K / L / M(ASTM B88)	Medical Copper Pipe(ASTM B819)	ACR Copper Pipe(ASTM B280)
Tensile Strength (min)	210 MPa (Hard) 205 MPa (Annealed)	210 MPa (H58 Temper – Hard)	210 MPa (H58) / 205 MPa (O60)
Yield Strength (min)	69 MPa (Hard) 45 MPa (Annealed)	69 MPa (H58 – Hard)	69 MPa (H58) / 45 MPa (O60)
Elongation (min %)	30% (Annealed) 10% (Hard)	10% (H58 – Hard)	10% (H58), 30% (O60)
Hardness (HR15T)	60–75 (Hard) 45–60 (Annealed)	60–75 (H58 – Hard)	60–75 (H58), 45–60 (O60)

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe Advantages:

Kanchan Copper industries have produced Copper Pipes with the advantage of a balance of durability, safety and long-term cost effectiveness. They are corrosion resistant and thermally conductive and can thus be used in residential and industrial systems in Canada. They are also easy to install as well as recycle, which increases their usefulness. Kanchan Copper industries has uniform quality of every application.

So why copper pipes?

• Long Service Life: Copper Pipes have a long life that can extend to decades without wearing away, hence it allows one to increase the number of years without replacing it.
• Corrosion Resistant: They are resistant to internal corrosion formed by water and chemistry to maintain the quality and strength of water and pipes.
• Fire Resistive: Copper has no flames and does not produce toxic fumes and hence is safer when used in buildings in Canada.
• Bacteriostatic Property: Copper contains a property in that it naturally prevents the growth of bacteria, this keeps water delivery in a state of hygiene.
• High Pressure and Temperature Compatibility: Suitable to be applied in hot and cold systems i.e. HVAC and industry lines.
• Simple to Make and Set Up: Light weight and flexible makes it easy to invite faster and cost effective.

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe Applications:

Kanchan Copper Industries offers Copper Pipes which are applied in many and diverse applications in Canada including in the residential areas plumbing and in the huge industrial sectors HVAC system. They work perfectly in harsh conditions, which makes them suitable to install in commercial and health facilities. The firm also offers trustworthy mainlines balanced to the industry-specific requirements.

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe Industrial Applications:

• HVAC Systems: Kanchan Copper Industries deals in Copper pipes which are suitable in installation of heating, ventilation, and air conditioning systems. The ability to manage temperature in industrial systems in Canada depends on their thermal efficiency and also the leak free connections.
• Refrigeration Plants: Copper Pipes are important in commercial refrigeration systems in order to ensure pressure integrity and thermal flow. Kanchan Copper industries supply the accurately manufactured pipes that work under extreme weather conditions such as in Canada.
• Oil and gas Industry: Copper Pipes are applied to the oil and gas industry in the aspect of special fluid transportation. Kanchan Copper industries guarantees pipes that are resistant to high pressure so that it can operate safely in areas that are remote and in industrial places in Canada.
• Chemical Processing:
• Chemical resistance properties of copper are suitable to those applications to be used in processing plants. Kanchan copper industries offer some of the pipes that are long lasting in their performance, even when in contact with harsh substances.
• Power Plants: In power generation Copper Pipes are utilized in the heat exchangers and cooling systems. Kanchan Copper Industries produces the copper conductivity pipes with a high conductivity level according to the effectiveness of the Canadian power plant installations.

Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe, Medical Copper Pipe And AC Copper Pipe General Applications:

• Residential Plumbing: In Kanchan Copper Industries, safe and clean water supply to the home is guaranteed through provision of pipes. They are strong and hygienic enough to make plumbing networks last long among the Canadian households.
• Commercial Buildings: Copper Pipes are a good option to distribution water and HVAC to such large scale buildings as a mall and an office. Kanchan Copper Industries produces customized piping systems that are operative.
• Medical Gas Systems: Copper is utilized in transportation of oxygen and other gases in hospitals and clinics. Kanchan copper industries provide sterilized and degreased pipes complying with the healthcare safety standards established in Canada.
• Fire sprinkler Systems: Copper is very fire resistant and hence will suit emergency sprinklers. Kanchan copper industries also offers safe certified piping strategies in building safety codes.
• Solar Water Heating Systems: Solar energy also uses Copper Pipes of Kanchan Copper Industries. They have great conductivity of heat which helps them absorb and distribute energy effectively.
