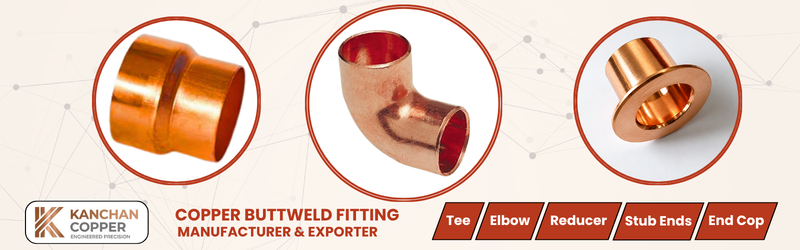

Copper Buttweld Fittings Manufacturer & Exporter in Saudi Arabia
Copper Buttweld Fittings are manufactured precision pipe fittings for butt-welding or brazing connections to copper pipes for joining, redirecting, reducing or terminating copper pipes. They are able to give a secure and long lasting joint without having any rough spots in the interior flow of the pipe work.
We are the Copper Buttweld Fittings Manufacturer & Exporter in Saudi Arabia who produce copper elbows, tees, couplings, reducers, end caps, stub ends, U bends, and Y bends for industrial, HVAC, refrigeration, plumbing, medical gas and other copper pipe fittings applications. Fittings can be manufactured based on applicable international standards and customer’s requirements.
Copper Buttweld Fittings
Copper Buttweld Fittings are made to work with a butt connection of copper pipes. They may be brazed, or joined by appropriate copper jointing procedures used for the application.
The compactness of copper fittings and their smooth bore contribute to reducing flow restrictions and ensuring an efficient connection between pipes. These fittings are ideal for challenging piping applications, thanks to copper’s corrosion resistance, thermal conductivity and long life.
Copper Buttweld Fittings Types
We have a variety of Copper Buttweld Fitting types to suit changing direction, adding branches, linking different pipe sizes and closing pipe ends.
Copper Buttweld Elbows Fittings
Copper Buttweld Elbows are used to alter the direction in copper piping systems. They can be obtained in various bend angles and configurations, depending on the piping requirement.
The most common types are elbows that are 45° or 90°. Copper elbows are employed in HVAC, refrigeration, plumbing, and industrial piping systems to help control the direction of pipes.
Copper Buttweld Tees Fittings
Copper buttweld tees are used to make a branch connection off the main copper pipe. These are available in equal and reducing configuration.
These fittings can be used to split a piping system into two flow paths without losing alignment, providing a secure connection.
Copper Buttweld Coupling Fittings
Copper Buttweld Couplings are used for straight line coupling of two copper pipes. They can be used for extending a pipeline or connecting two lengths of pipe of the same or compatible sizes.
The simple configuration offers a small connection for copper piping installations.
Copper Buttweld End Caps Fittings
Copper Buttweld End Caps are a type of end cap that is used to close or terminate the end of a copper pipe. End closure is permanent and they can be used when piping systems are built or changed.
These fittings are often employed when a pipeline is required to end securely.
Copper Buttweld Reducers Fittings
Copper Buttweld Reducers connect copper pipes having different outside diameters. They are employed to join the larger pipe size to the smaller pipe size or vice versa when a piping system requires such a change.
Reducers are used to provide a controlled transition and to adjust the piping system to the various line sizes.
Copper Buttweld Stub Ends Fittings
Copper Buttweld Stub Ends are designed to be used when a flanged connection is needed in a copper piping system. They offer an appropriate termination for compatibility with an appropriate flange arrangement.
These fittings are useful in systems that require that sections of piping be connected, disconnected or maintained by flanged joints.
Copper U Bend Buttweld Fittings
Copper U Bend Buttweld Fittings are a U shaped change in piping direction. They are beneficial in situations where the piping system needs to have a tight curvature at the return bend or a specific piping routing.
U bends are utilized in applications such as heat transfer, refrigeration, HVAC and special copper piping arrangements.
Copper Y Bend Buttweld Fittings
Copper Y Bend Buttweld Fittings are used for special piping applications when it is necessary to change the direction of the pipeline in a Y configuration.
They can be made to whatever size and according to the application’s demands and are suitable for some industrial and copper piping installation.
Copper Buttweld Fittings Specification
Copper Buttweld Fittings can be delivered in various sizes, wall thickness and materials and configurations according to application and applicable standard.
| Standard | ASTM B819, EN 1057, EN 13348, ASTM B88 |
|---|---|
| Size | 1/2″ to 24″ NB |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | Welded |
| Schedule | SCH 10, SCH 20, SCH 30, SCH 40 |
| Grades | DHP Copper, C10100, C10200, C11000, C12000, C12200 |
| Application | HVAC & Refrigeration, Plumbing, Industrial Piping, Heat Exchangers, Cooling Systems, Engineering Applications |
Copper Buttweld Fittings Pressure Rating Schedule Chart
| NPS (Normal Size Of Steel Pipe) | 10S Sche | 40S Sche | 80S Sche | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 90 Deg Elbow | 45 Deg Elbow | Equal Tee | 90 Deg Elbows | 45 Deg Elbows | Equal Tee | 90 Deg Elbow | 45 Deg Elbow | Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.1 | 0.1 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.2 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.4 | 0.23 | 0.68 |
| 40 | 0.3 | 0.17 | 0.68 | 0.4 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.5 | 0.25 | 0.85 | 0.7 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.4 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.2 | 1.08 | 3.31 | 2.97 | 1.5 | 4.45 |
| 90 | 1.7 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4 | 2 | 5.44 |
| 100 | 2.1 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.2 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.9 |
| 300 | 25.8 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Copper Elbow Buttweld Fittings size, dimension chart
| NPS For (Normal Size Of Pipe) | O.D. For (Outside Dai.) | BW 90 Deg Elbow | BW 45 Deg Elbow | BW Return 180 Deg Elbow | ||||
|---|---|---|---|---|---|---|---|---|
| BW (Long Radius) Elbow | BW (Short Radius) Elbow | BW (Long Radius) Elbow | BW (Short Radius) Elbow | |||||
| (In Inch) | (MM) | (inch) | Center-Face (Inches) | Center-Face (Inches) | Center-Face (In Inches) | Radius (In Inches) | Center-Center (In Inches) | Back-face (In Inches) |
| 1/2 | 21.3 | 0.84 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.05 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.66 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.9 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.5 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.5 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.75 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
Copper Buttweld Fittings Tolerance
| Common Type Of Buttweld Fitting | 45 degree elbows And 90 deg elbows | 180 Deg Returns | |||||
|---|---|---|---|---|---|---|---|
| Normal Size Of Steel Pipe | O.D. at Bevel | I.D. at End | WT For (Wall Thickness) t / t1 | Center-End Dai. A-B-C-M | Center-Center Dai. (O) | Back-Face Dai. (K) | Align-ment of Ends (U) |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 4 | 1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 5 a 6 | 2 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | 1 | 3,2 | tickness | 2 | 7 | 7 | 2 |
| 12 a 18 | 1 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | 1 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | 2 | 4,8 | 3 | – | – | – | – |
| 32 a 48 | 2 | 4,8 | 5 | – | – | – | – |
Applications of Copper Buttweld Fittings
The Copper Buttweld Fittings are applicable to various types of piping applications where reliable copper connections are needed.
- HVAC & Refrigeration
In HVAC and refrigeration, copper refrigerant piping is routed and connected using copper elbows, tees, reducers and couplers. - Plumbing Systems
Copper’s ability to resist corrosion and withstand the test of time makes it the right choice for hot and cold water distribution systems that use copper fittings. - Medical Gas Pipeline Systems
When manufactured and installed to the applicable medical-gas standards, medical gas pipeline systems such as oxygen, medical air, vacuum and other medical gases are made from suitable copper piping components. - Industrial Piping
Copper buttweld fittings are suitable for certain industrial applications that need copper piping for fluid, gas, heat-transfer, or special process applications. - Heat Transfer Systems
Copper’s high thermal conductivity makes copper piping components suitable for applications involving heat transfer and thermal management. - Commercial Buildings
Copper fittings may be used in building services, HVAC, refrigeration, plumbing and other mechanical piping applications.
